Dongguan Jintong Plastic Machinery Co., Ltd.
VERTICAL INJECTION MOLDING MACHINE EXPERT
Add to Cart

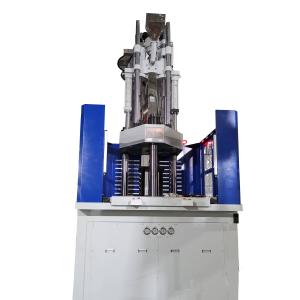

Model | JTT-2500R | ||
injection system | Screw Diameter | mm | 55 60 65 |
Injection Pressure | kg/cm2 | 2087 1754 1494 | |
Theoretical Shot Volume | cm3 | 665 792 929 | |
Max Shot Weight | g | 599 713 836 | |
Injection Rate | cm3/sec | 202 243 285 | |
Screw Stroke | mm | 280 | |
Screw Speed | rpm | 152 | |
Heating Capacity | kw | 20 | |
clamping system | Clamping Force | tons | 250 |
Opening Force | tons | 26.4 | |
Min Mold Height | mm | 300 | |
Opening Stroke | mm | 450 | |
Max Open Daylight | mm | 750 | |
Mold Dimension | mm | 850*450 | |
Rotary Table Diameter | mm | 1800 | |
Ejector Force | tons | 4.6 | |
Ejector Stroke | mm | 100 | |
other | Motor Power | kw | 33.8 |
Machine Dimension | m | 3.8*2.55*4.12 | |
Machine Weight | tons | 13.6 |
1) vertical clamping, vertical injection,
2) clamping force, injection weight and shot speed can be changed according to actual demand.
3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity
PRODUCT ADVANTAGE
Energy-saving: save 30% energy compared to similar products by using SIFU pump system
High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating: save 55% cooling water quantity at least compared to similar products
Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
SERVICE ADVANTAGE
17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
